Birchview Estate, Pre-Drywall Documentation

A 10,000 sq ft custom home in Lorne Park, Mississauga, documented at pre-drywall density before insulation and drywall closed every cavity. The hosted tour is now the live demo on virtualiz3d.com — open it and walk through what a builder-grade pre-drywall record looks like at this scale.

Project context

A Lorne Park new-build on the larger end of south-Mississauga custom — two above-grade floors plus a finished basement, with the mechanical complexity that scale implies: three HVAC zones, a smart-home backbone, stacked plumbing, and a service room that connects the whole package.

Why this scan was non-trivial

At 10,000 sq ft a 30-position marketing tour would have lost almost every cavity worth documenting. We scaled to the Premium tier’s brochure density — roughly 25–50 positions per 1,000 sq ft — to capture every wall cavity from at least two angles, every mechanical termination, and every service penetration before drywall went up.

A glimpse inside

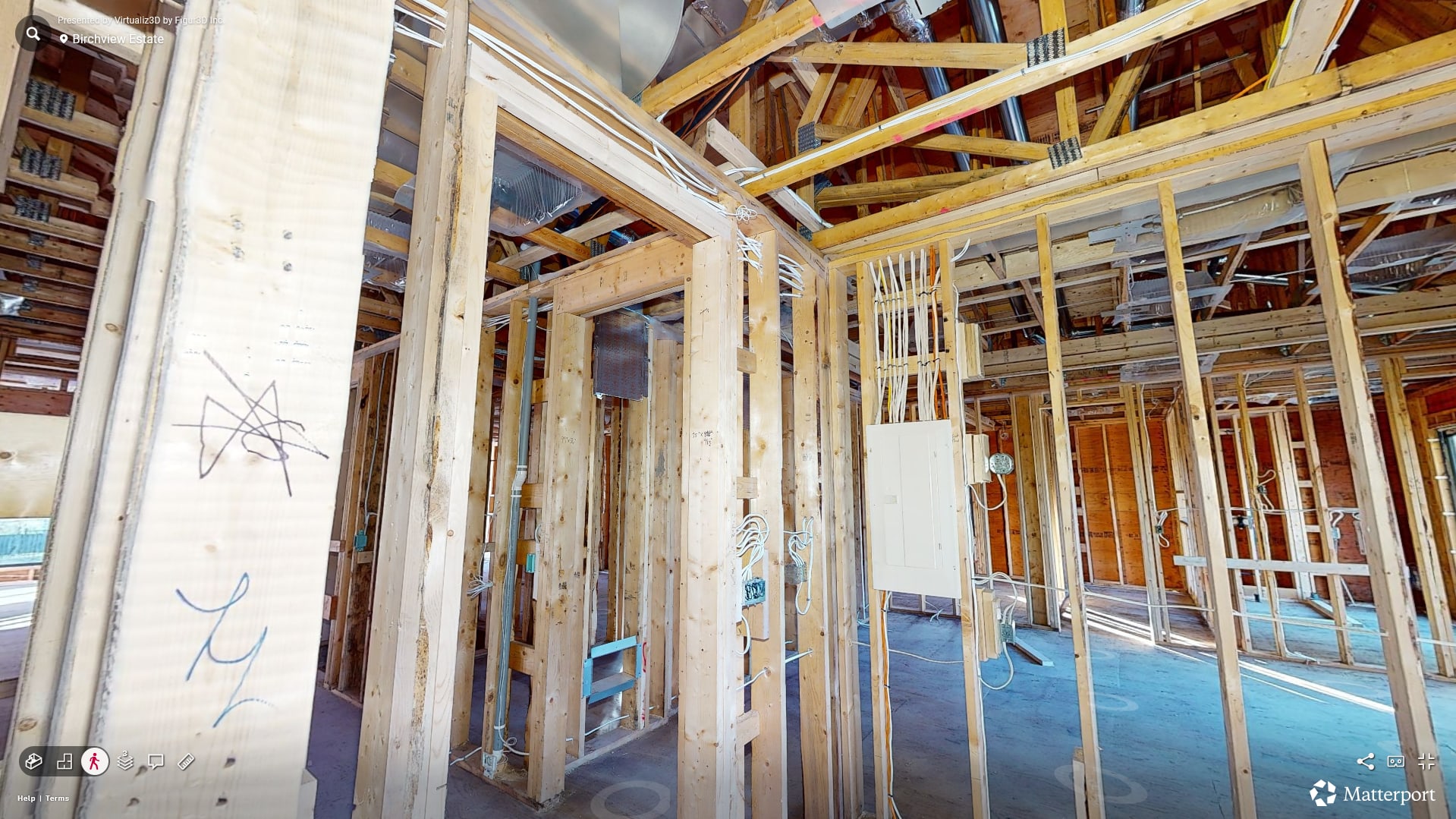

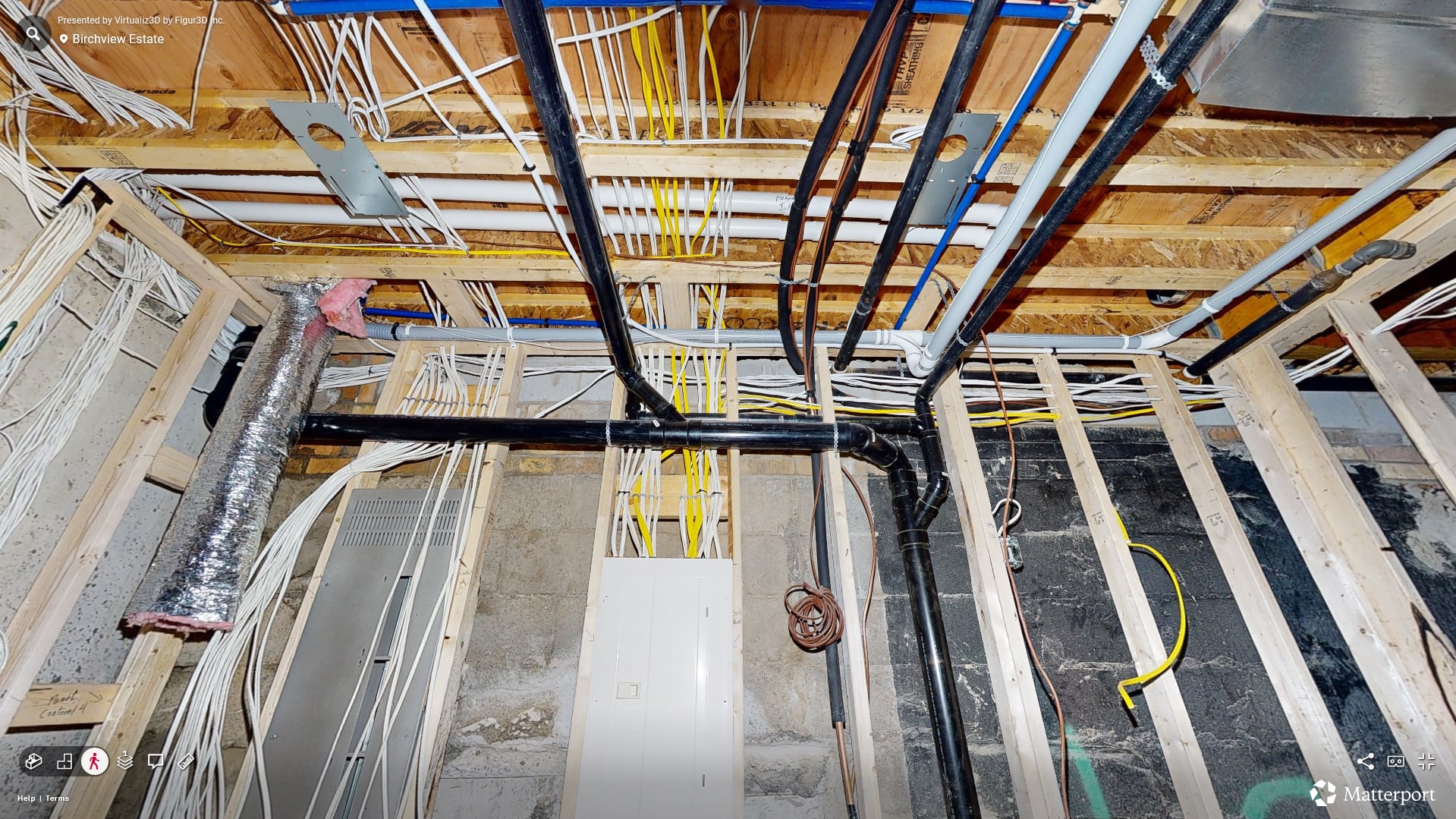

These are still captures from the navigable scan. In the live tour you can walk every angle, measure between studs, and pull up any room from the dollhouse view.

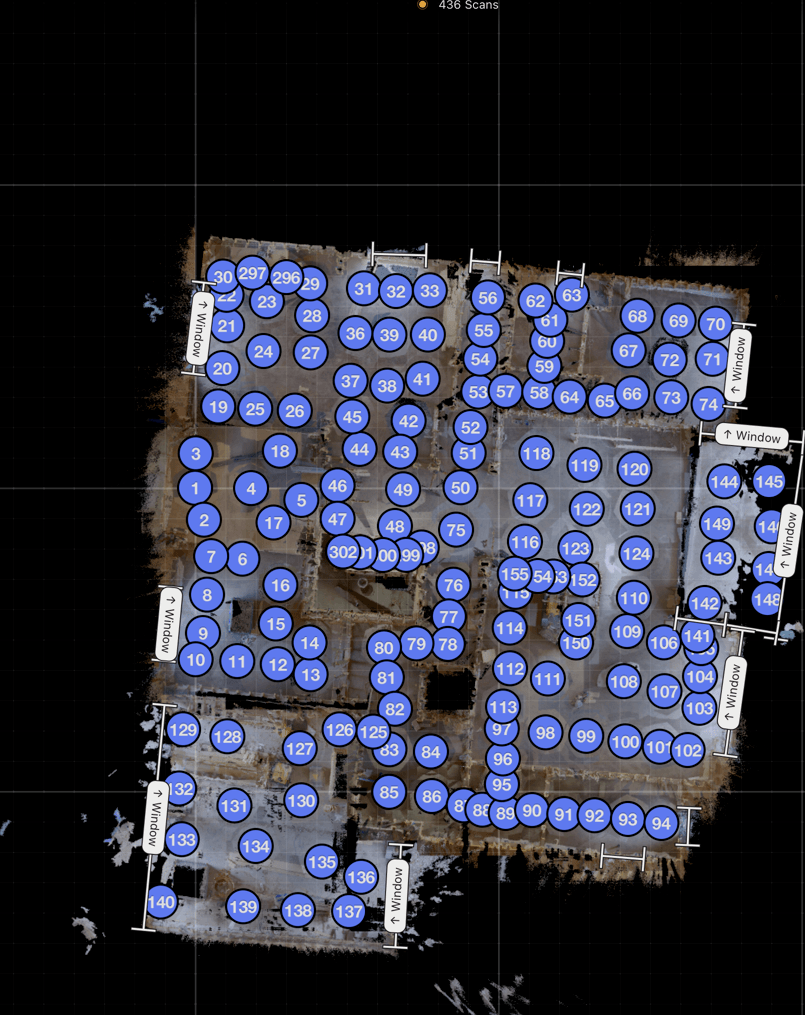

Scan coverage — every position on the build

Every blue dot is a 360° capture. From above, the pattern is the answer to a simple question: can a service tech, a renovator, or a warranty department five years from now still find every wall cavity, every termination, every chase? The density says yes.

What you can do with the tour

Open the tour above and use the dollhouse view to see the whole structure, the floor-plan view for layout, or the inside view to walk the home and inspect mechanical detail. The same record is what the builder uses for warranty defence, owner reference, and trade handoff.
